Adding a Virtualization Server

To add a virtualization server:

1. Log on to HC panel.

2. From the left menu click General, and then Server Manager.
   Server Manager page is displayed.

3. Click Add Server.

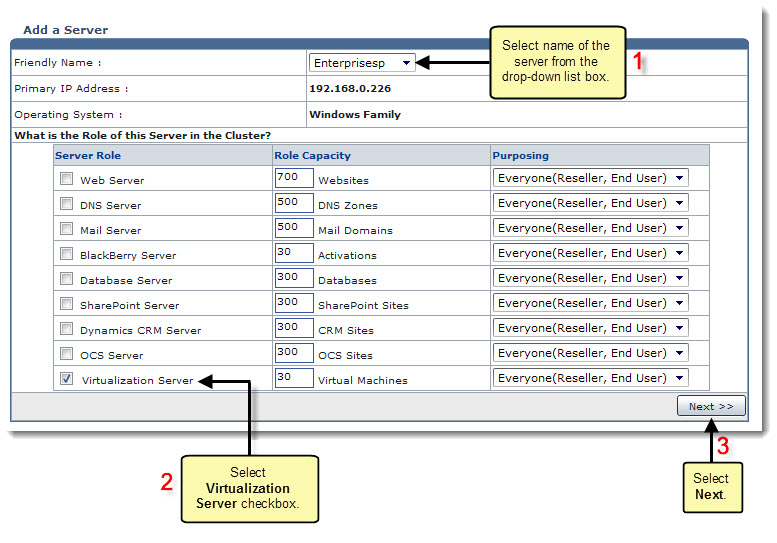

   The Add Server page is displayed.

4. Click the Friendly Name arrow and select the required server from the drop-down list box.

5. Under Server Role, select the Virtualization Server check box.


   Every server can have one or more role(s) in the cluster. These roles need to be set every time a new server is added to the cluster.

6. Under Role Capacity, type the number of Virtual Machines supported by the server.

7. Under Purposing, click the arrow and select the end user for the server from the drop-down list box.

8. Click Next.

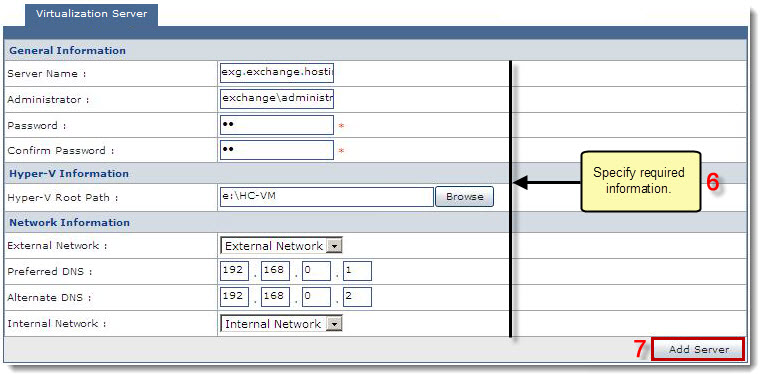

   The Virtualization Server configurations page is displayed.

9. Specify General Information:

• Server Name: Type name of the server.

• Administrator: Type name of the administrator.

• Password: Type password for the administrator.

• Confirm Password: Re-type the password.

10. Specify the Hyper-V Information:

• Hyper-V Root Path: Enter path for the Hyper-V root.

11. Specify the Network Information:

• External Network: Select external network from the drop-down list box.

• Preferred DNS: Type preferred DNS.

• Alternate DNS: Type alternate DNS.

• Internal Network: Select internal network from the drop-down list box.

12. Click Add Server to update the cluster.
    A Virtualization Server is added.
